PPGL

客户定制PVDF涂层PPGL钢卷

对客户而言，彩涂铝锌合金钢卷是制造压型屋面板、围栏和装饰护墙板的理想之选，耐候性出众；它既保留彩涂产品的外观美感，又能在户外环境中提供更持久的耐用性。

参考价 Please contact us for more details 最终价格取决于数量、公差与目的港。

技术参数
Substrate Thickness	0.22 mm – 1.30 mm
Width	600 mm – 1500 mm
Coating Weight	AZ40 – AZ200
Coating Structure	Two-coat, one-bake (2/1M) or two-coat, two-bake (2/2M)
Topcoat Thickness	Typically 15–25 μm (adjustable upon request)
Backcoat Thickness	Typically 5–12 μm

获取报价 WhatsApp

每批随货提供 EN 10204 3.1 材质证明
可按需安排 SGS / BV 出货前验货
支持 FOB / CFR / CIF，请告知卸货港

产品概述

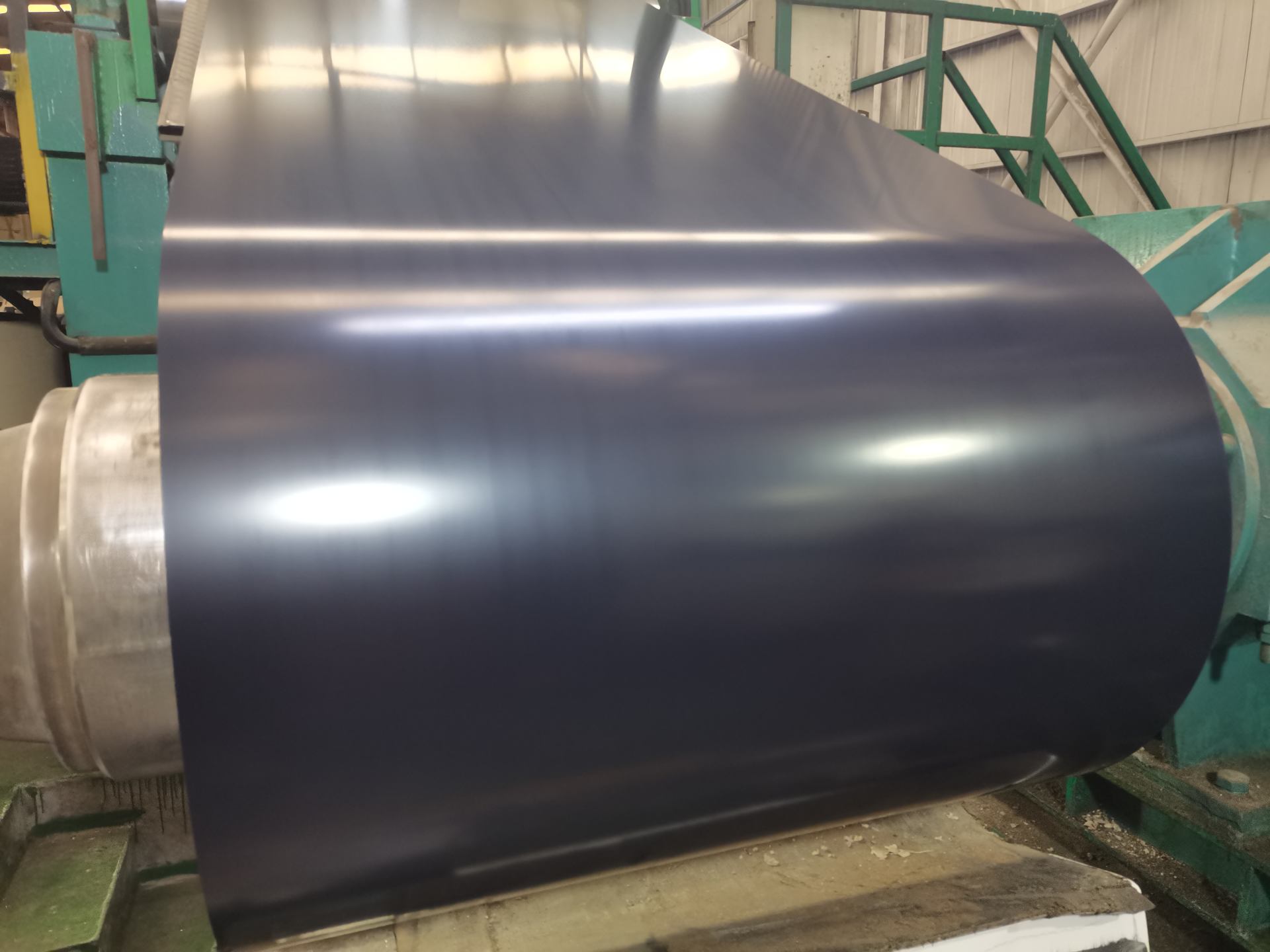

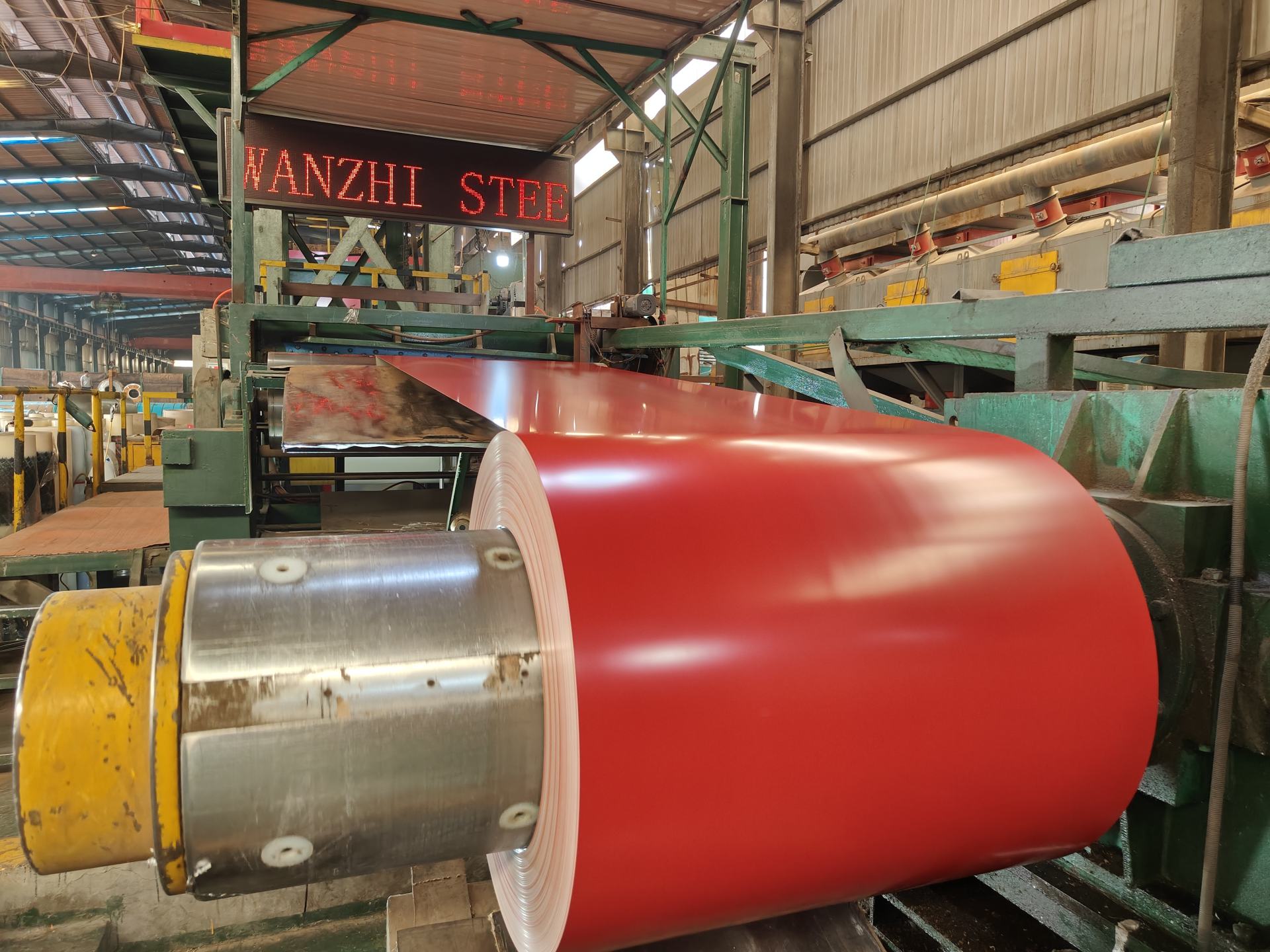

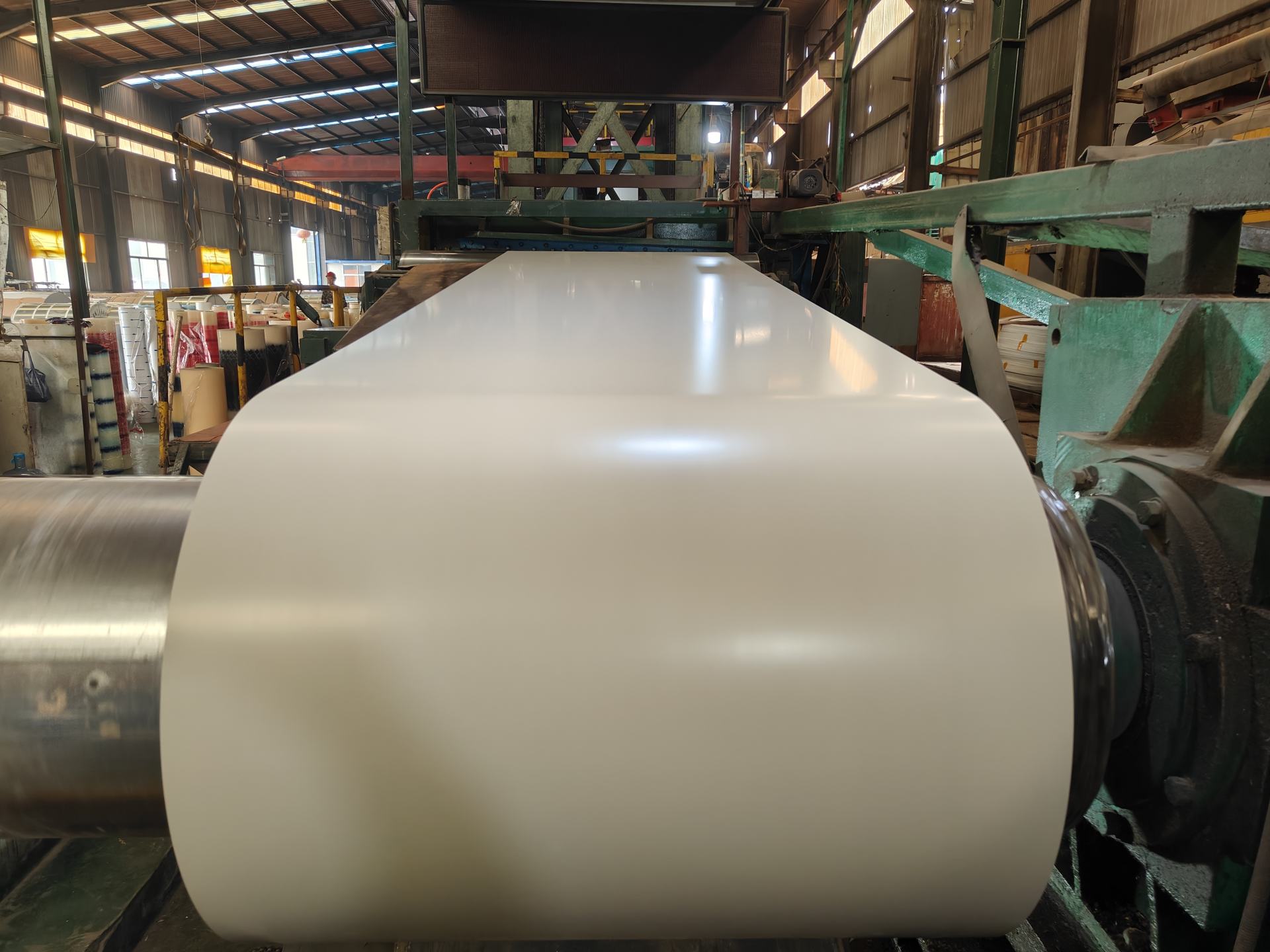

Pre-Painted Galvalume Steel Coil (PPGL) is a coil product manufactured by taking a hot-dip Galvalume steel coil as the substrate, subjecting it to surface pretreatment, applying one or more layers of organic coatings via a continuous roll-coating process, and subsequently curing the coatings through baking. The metallic coating on the substrate typically consists of approximately 55% aluminum, 43.4% zinc, and 1.6% silicon. This composition provides both the physical barrier protection of aluminum and the sacrificial anodic protection of zinc, resulting in corrosion resistance that is significantly superior to that of standard galvanized steel substrates.

Key Performance Advantages

Dual-layer corrosion protection with exceptional weather resistance. The aluminum-zinc alloy coating on the substrate provides a robust foundation against corrosion, while the topcoat adds an organic barrier, creating a "metallic coating + organic coating" dual-protection system. For a given coating weight, color-coated aluminum-zinc alloy sheets generally offer superior overall weather resistance compared to color-coated galvanized sheets, making them ideal for outdoor applications that demand a longer service life.

Excellent formability. These sheets are suitable for standard processing operations—such as shearing, bending, and roll forming—and are well-suited for continuous roll-forming processes used in the production of metal roofing or wall panels. The coating maintains strong adhesion during forming, with minimal risk of cracking or peeling.

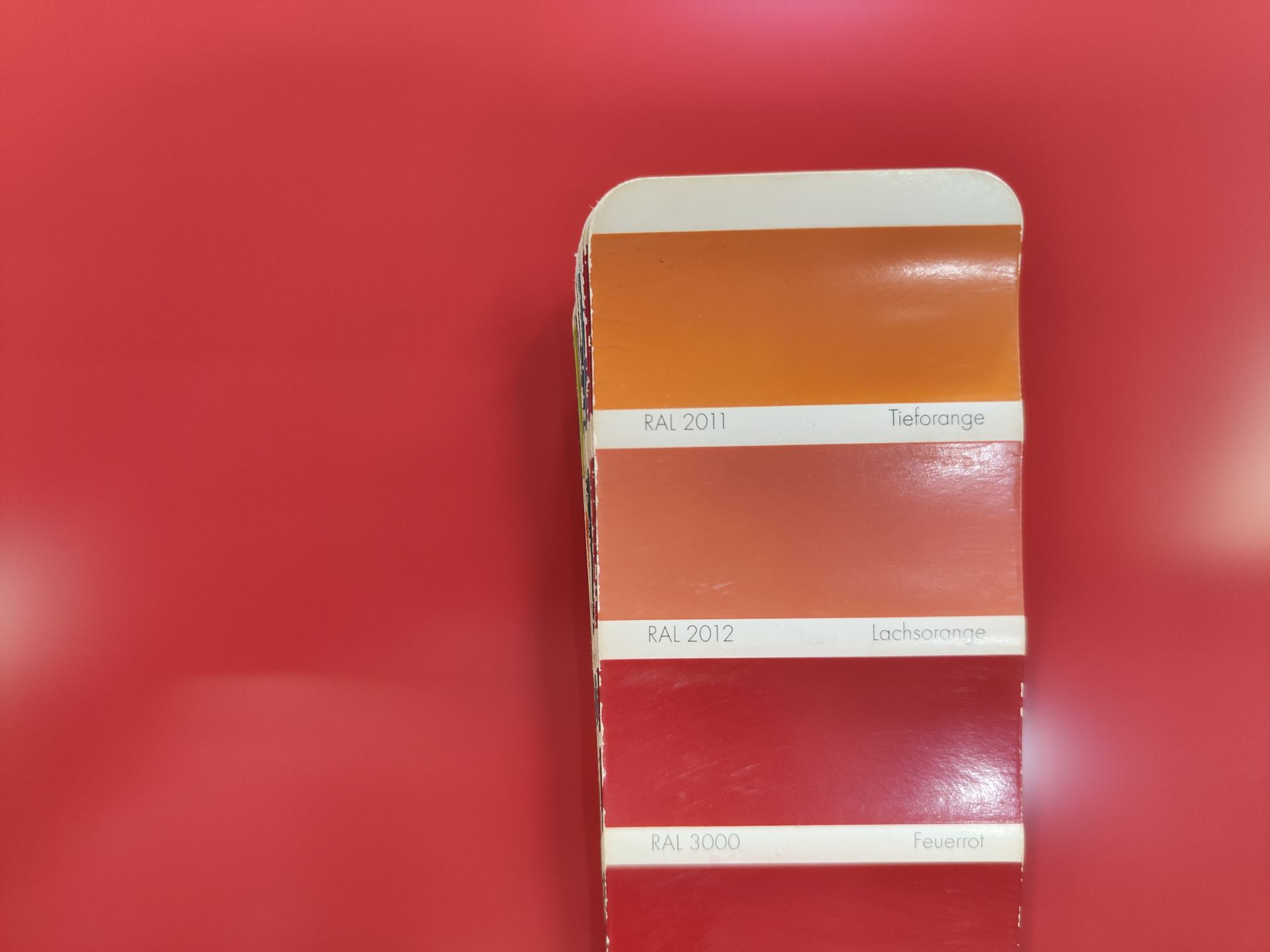

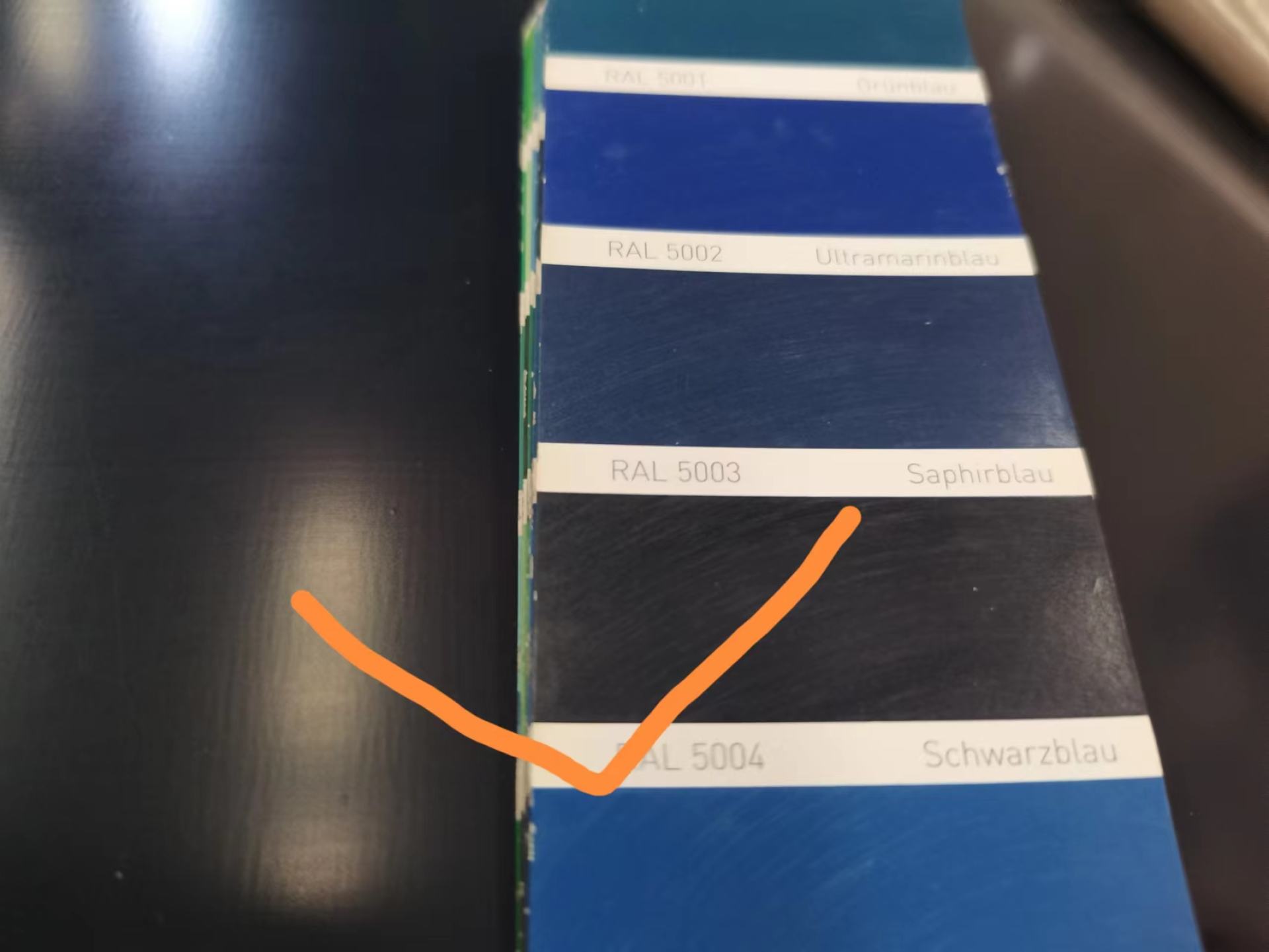

Diverse decorative options. Coating colors can be customized based on the RAL color system or specific customer samples. Surface finishes—including high-gloss, matte, or embossed textures—are available to meet various aesthetic and textural requirements.

Flexible coating systems. Depending on the intended operating environment, a range of coating types can be selected—such as Polyester (PE), Silicone-Modified Polyester (SMP), High-Durability Polyester (HDP), or Polyvinylidene Fluoride (PVDF)—to align with specific weather-resistance requirements and budget considerations.

Common Specification Range

Item	Parameter
Substrate Thickness	0.22 mm – 1.30 mm (0.3–1.0 mm is commonly used)
Width	600 mm – 1500 mm (1000/1200/1250 mm are commonly used)
Coating Weight	AZ40 – AZ200 (AZ100/AZ150 are commonly used)
Coating Structure	2-coat, 1-bake (2/1M) or 2-coat, 2-bake (2/2M)

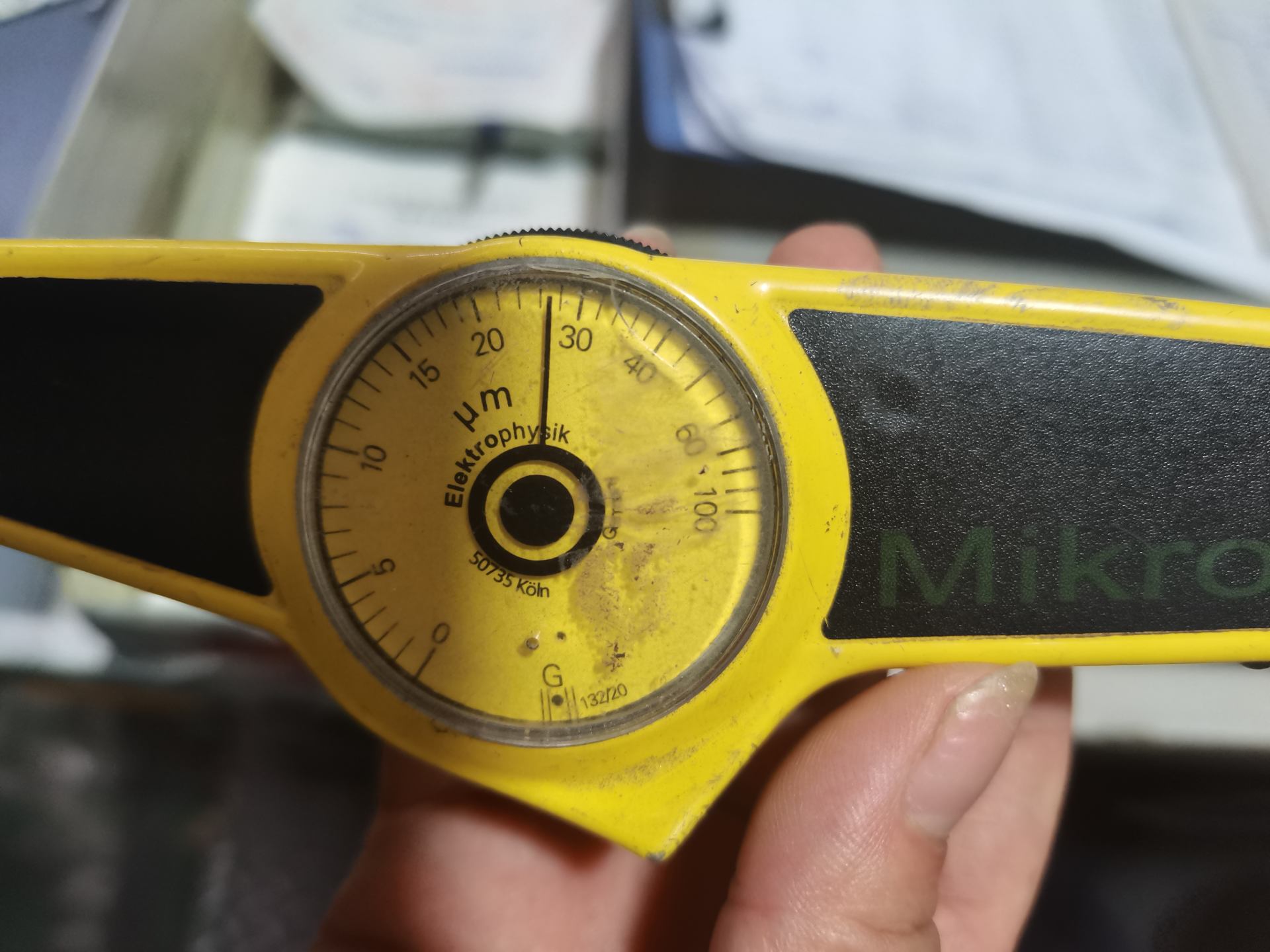

Top Coat Thickness	Typically 15–25 μm (adjustable upon request)
Back Coat Thickness	Typically 5–12 μm
Coil Inner Diameter	508 mm / 610 mm
Coil Weight	3–8 tons (customizable)

Common Grades and Standards

Grade Systems: TDC51D+AZ (for cold forming), TDC52D+AZ, TS250GD+AZ, TS350GD+AZ (for structural applications), etc.
Applicable Standards: Q/BQB 445, EN 10346, ASTM A755, JIS G3322, etc.

Typical Applications

Roofing Panels. Through roll-forming, color-coated Al-Zn alloy-coated steel coils are transformed into profiled roofing panels. Available in a wide range of pre-selected colors, these panels require no additional on-site painting. They are ideal for the roofs of industrial plants, warehouses, and commercial buildings, offering superior weather resistance compared to standard color-coated galvanized steel panels.

Construction Site Fencing/Hoarding. These coils can be processed into temporary construction site fencing or partitions. The color-coated surface provides an immediate, finished appearance (commonly in blue, gray, or white), while the Al-Zn alloy substrate ensures excellent rust resistance in outdoor environments—making them perfect for projects that demand both an attractive appearance and long-term durability.

Decorative Purposes. Suitable for decorative wall panels, ceilings, partitions, and backing boards for signage. Colors can be customized to meet specific design requirements, with surface finishes available in either gloss or matte, combining the structural strength of metal with a high-quality decorative aesthetic.

Reference Guide for Selecting Pre-painted Galvanized Coils (PPGI)

Comparison Item	Pre-painted Galvanized Coil (PPGI)	Pre-painted Galvalume Coil (PPGL)
Substrate Coating	Pure Zinc	55% Aluminum + 43.4% Zinc + 1.6% Silicon
Corrosion Resistance	Good	Superior (substrate corrosion resistance is more than 3 times that of GI)
Heat Resistance	Moderate	Better (substrate can withstand temperatures up to approx. 300°C)
Typical Applications	General construction, fencing, home appliances	High-durability roofing, fencing, decorative substrates
Cost Positioning	Economical	Mid-to-high end

Quality and Supply

Original manufacturer’s warranty certificates, as well as test reports for coating weight and thickness, are available.
We provide recommendations on the appropriate steel grade, coating weight, and coating system based on the customer’s intended application.
Services such as slitting and cut-to-length processing are available.
Export packaging can be customized to meet specific requirements, ensuring it is suitable for ocean freight.

技术参数

客户定制PVDF涂层PPGL钢卷 — 技术参数
Substrate Thickness	0.22 mm – 1.30 mm
Width	600 mm – 1500 mm
Coating Weight	AZ40 – AZ200
Coating Structure	Two-coat, one-bake (2/1M) or two-coat, two-bake (2/2M)
Topcoat Thickness	Typically 15–25 μm (adjustable upon request)
Backcoat Thickness	Typically 5–12 μm
Coil Inner Diameter	508 mm / 610 mm Coil
Weight	3–8 tons (customizable)

以上为常规值，公差与检测要求以报价单确认为准。
